XRCJ section remover

1. Product IntroductionThe XRCJ knot remover is a new type of knot removal equipment used to remove larger undecomposed wood knots, grass knots, and various heavy objects such as metal pieces and gravel in the chemical pulp after cooking. This ensures the safe operation of subsequent pulp processing equipment. The machine can effectively separate impurities, has a large production capacity, is equipped with a heavy object catching device, and operates safely.

2. Working PrincipleThis machine uses a fixed wing structure and a rotating screening drum. The drum with a corrugated surface performs a circular motion. Utilizing the high centrifugal force generated by the high-speed rotating drum, heavy impurities in the pulp are thrown to the outer periphery, which can effectively remove impurities such as knots, gravel, and iron nails from the pulp, and the screening drum is not easily clogged; the closed structure can maintain a higher temperature of the pulp.

3. Equipment AdvantagesThis machine has the advantages of high screening concentration, effective knot removal, and low electricity consumption per ton of pulp. It has minimal fiber loss and is an excellent choice for knot removal equipment before pulp black liquor extraction and washing.

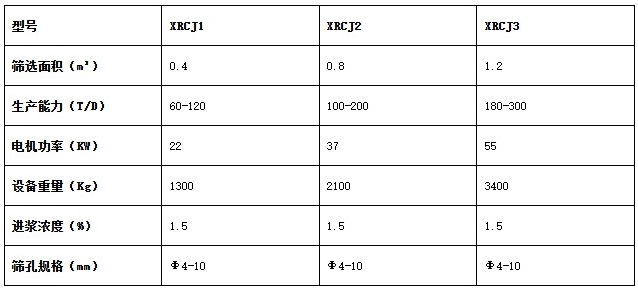

4. Parameter Selection
