Rope Stranding Machine

1. Equipment IntroductionThe rope twisting machine, as a coarse screening device, is used in conjunction with the hydraulic pulping machine.Various waste papers, which have not been sorted, enter the hydraulic pulping machine where the fibers are dispersed and passed through the screen plate. Various impurities such as iron wires, plastics, fine ropes, and cotton yarn continuously rotate and entangle into a mass. With the help of the guiding rope function of the rope twisting machine, these impurities are twisted together to form a strand of rope, which is continuously pulled out from the rope twisting machine to facilitate the preliminary purification of the pulp.

2. Structural CharacteristicsThe device consists of a box, transmission mechanism, pulleys, and a lifting mechanism for the pressure wheel.The transmission mechanism is composed of a directly coupled electric motor, a two-stage reducer transmission shaft, bearings, and pulleys.The lifting mechanism for the pressure wheel consists of: a cylinder, a switching valve, the pressure wheel, and the pressure arm.

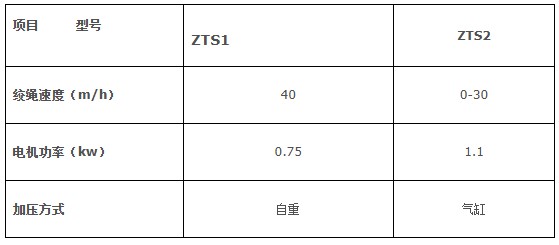

3. Parameter Selection.
